C Series (Zone 1, 2, 21, 22)

C, C2, C3


Find a stockist Chat to Specialist

Resources

Product Information

Overview

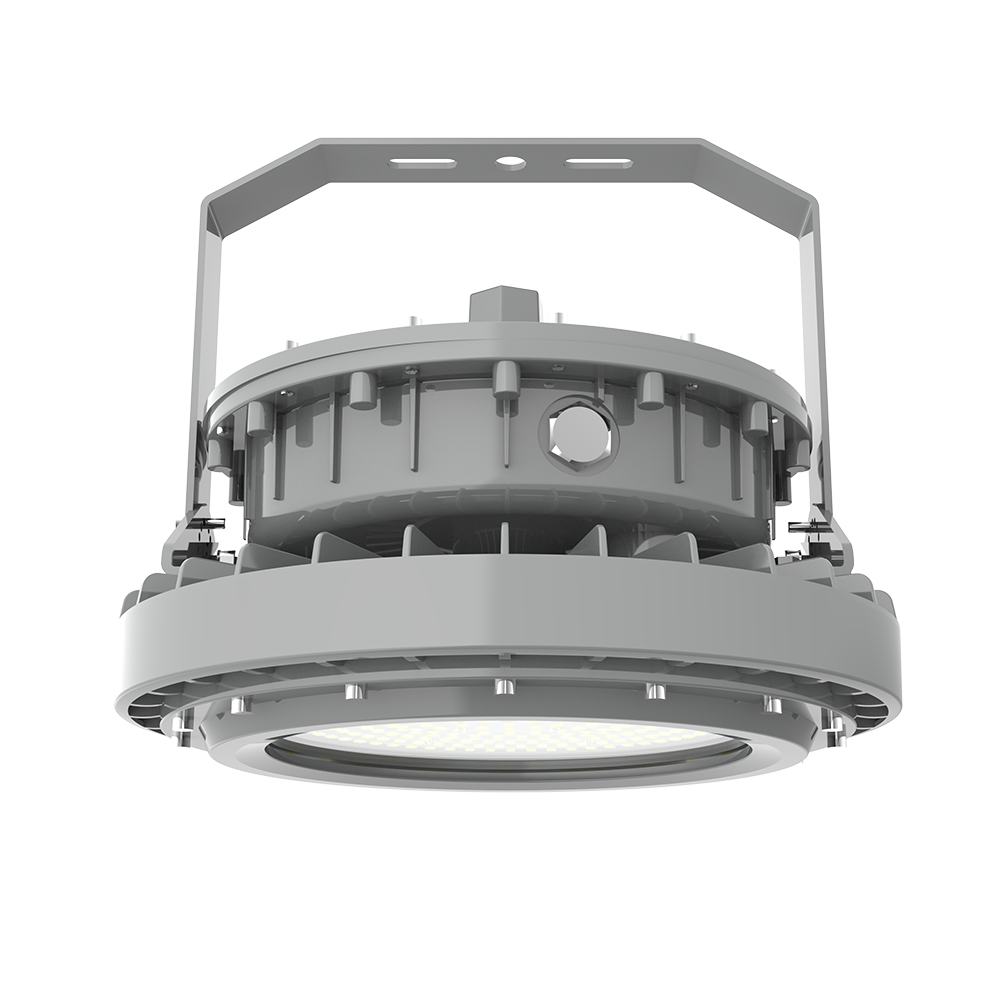

The C Series LED luminaire is the ideal choice for marine and hazardous applications. They can be used in locations where moisture, dirt, dust, corrosion and vibration may be present, or areas where wind, water, snow or high ambient can be expected.

Tech Specs

Rated Power

Available in 20W - 280W

Input Voltage

100-277VAC
120-250VAC
12-48VDC

Input Frequency

50/60Hz

Power Factor

>0.95

Emergency Function

3 Hours

Lumen Output

Available in 2800lm - 39,200lm

Lumens per Watt

140lm/W

CCT

3000K-6500K

CRI

>70

Beam Angle

40º, 60º, 90º, 120º

Dimming

0-10V

Ambient Operating Temperature

T3: -40º to 55ºC
100-277VAC: Ta≤+40/60°C (T4/T5/T6)
120-250VAC: Ta≤+80°C (T4)
12-48VDC: Ta≤+80°C (T3,T4)

Housing material

Copper-free aluminium

Lens

Tempered glass

Hardware

Stainless Steel

Protection

IP66/IP67/IK08 (glass cover)/IK10 (with wire guard)

Mounting

Ceiling, Wall, Hook pendant, Pole, Stanchion

Cable Entries*

Side: 3/4 NPT, M20, M25, 1/2NPT
Top: 3/4 NPT, M25

**Cable Entries: For side and top, 3/4 NPT is standard. If others are required, customer needs to indicate when placing an order.

Product Cover

This product is covered by a 5 Year limited warranty.
