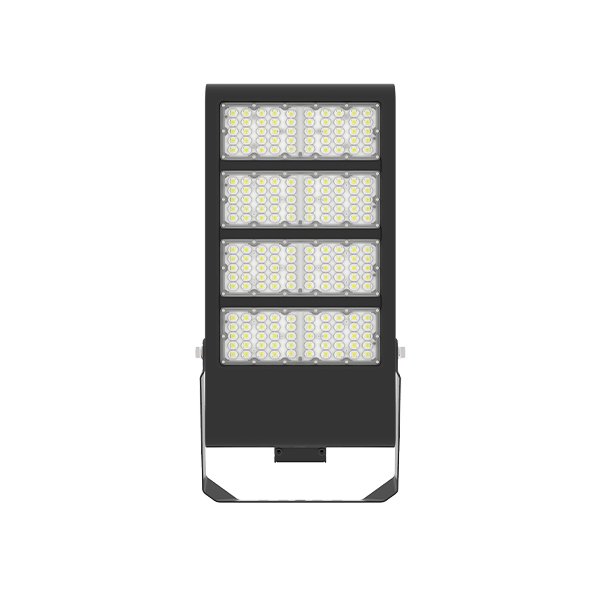

NOX 400-600W LED Floodlight Gen 5
ML-NOX40-60-V5-WW
ML-NOX40-60-V5-W
| Find a stockist | Chat to Specialist |
Brighter By Far.
Product Information
Overview
Dominate expansive areas with the absolute pinnacle of high-mast industrial lighting.
The monumental M-Elec NOX 400W to 600W LED Floodlight Generation 5 is an absolute behemoth designed for sports stadiums, massive logistics hubs, and heavy industrial yards. Featuring a vital built-in power-selectable switch (400W, 500, or 600W), it allows site managers to scale power demands on the fly. Pumping out a staggering maximum of 98,969 lumens at a premium efficacy of up to 168lm/W, this Gen 5 titan pierces absolute darkness with ease. Contractors appreciate the ultra-efficient offset bracket, an integrated ON/OFF photocell for smart automation, and 1m of specialized metal cable protection.
Built to resist extreme outdoor environments, this 11.86kg unit features an IP65 weatherproof rating, IK10 impact resistance, and an AkzoNobel powder-coated ADC12 aluminium heat sink. Complete with smooth 1-10V dimming via a heavy-duty Fahold driver, it includes M-Elec’s 7-year product warranty and 3-year onsite backup.
Features
Efficacy of up to 168lm/W
Upgraded LED chips and new driver - 16.6% Efficacy Improved
7 year warranty
Power selectable - Max 600W (400W / 500W / 600W)
What's in the box
1 x LED floodlight with bracket
1 x 1m of pre-stripped flex
1m of metal cable protection
1 x ON/OFF Photocell
1 x CTA Card
Tech Specs
Total Power Consumed
Max 600W* (Selectable 400W / 500W / 600W)
Max Lumen Output
98,969lm @ 600W
Efficacy
168lm/W
Colour Temperature
5000K (W) | 3000K (WW)
CRI
≥70
Beam Angle
90° x 120°
Dimmable
Yes (1-10V - min 30%)
IP Rating
IP65
Impact rating
IK10
Operating Temperature
-20°C to +45°C
Power Supply
120-277V AC Flicker free & non-isolated dimmable driver
Frequency
50/60Hz
Gland Size
Φ20.6 x 9.8mm
Average Life
50,000hrs**
Operating Current
400W= 1.66A | 500W= 2.08A | 600W=2.5A
Inrush Current
Up to 7 times operating current
Power factor
>0.9
Dimensions
W 357mm x H 739mm x D 136mm
Weight
11.8kg
Construction
Aluminium body, PC lens
* Total power consumed including driver
**Life span is calculated on expected average lifespan
Product Cover
This product is covered by a 7-year limited warranty.
