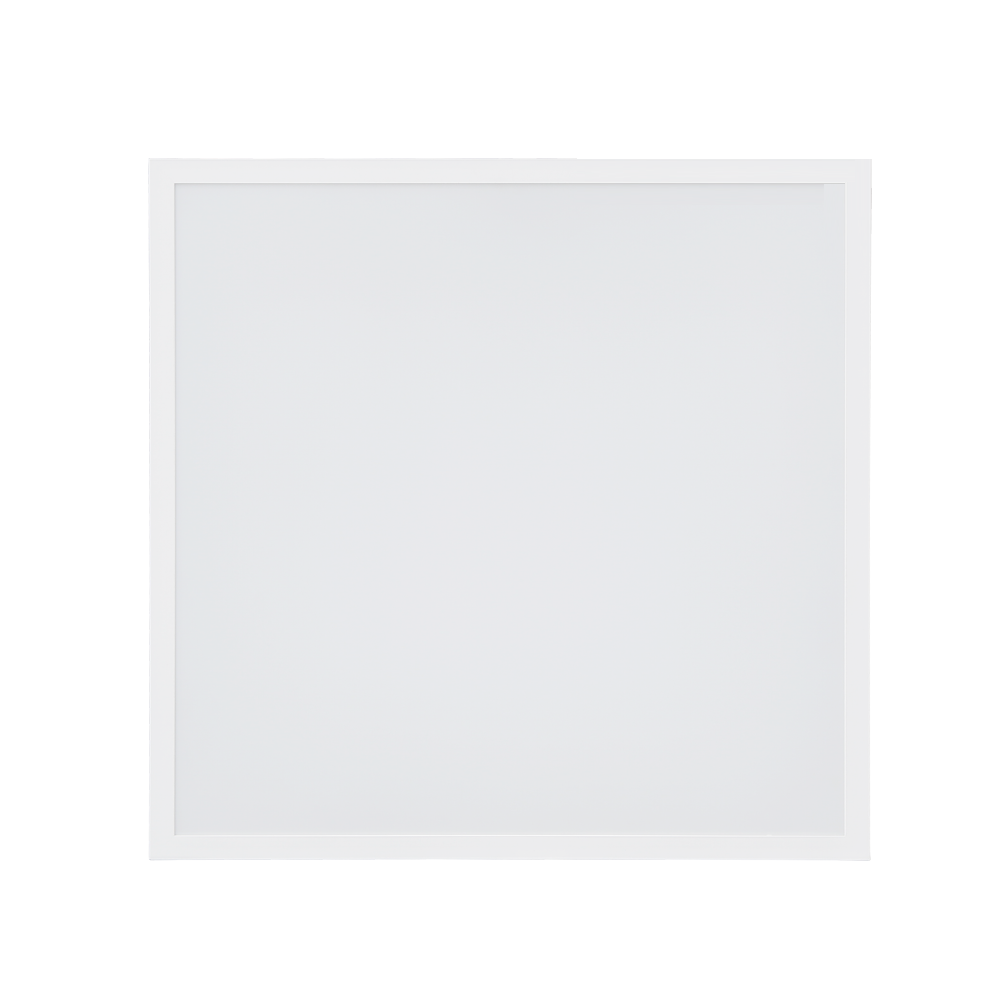

MR Backlit Panel 6X6 – ML-MRBP6X6-M

ML-MRBP6X6-M

Find a stockist Chat to a Specialist

Superb quality at an efficient price.

TBAR0
TBAR1
TBAR2

Resources

Product Information

Overview

The MR series LED panels from M-Elec deliver superb quality at efficient prices. With a full range of sizes (6×3, 6×6, 12×3, 12×6) and accessories (suspension, recessed and surface mounted kits) available, the MR range has extended on M-Elec’s panels to cover all variations of installations. With an efficacy of up to 120lm/W and colour temperatures of 4,000K – 6,000K and all models come standard with 3CCT multi-output, the MR series panels suit a variety of installations in the commercial space.

Features

Multi CCT

Flicker-Free Driver

High efficiency LED, power saving

High quality construction, robust and reliable

Full range, covers all variations of installation

What's in the box

1 x Backlit panel 6X6

1 x External driver with 600mm Flex AU plug

1 x User manual

Tech Specs

Total power consumed

36W (Warm White)*
33W (Neutral White)*
36W (White)*

Lumen output

3960lm

Colour temperature

4000K (Warm White)
5000K (Neutral White)
6000K (White)

CRI

82

Efficacy

110lm/W (Warm White)
120lm/W (Neutral White)
10lm/W (White)

IP rating

IP20

Dimmable

No

Beam angle

110o

Power supply

220-240V 50/60Hz

Current output

850mA ±5%

Average life

50,000hrs**

Operating temperature

-20°C to +45°C

Dimensions

Length: 595mm
Width: 595mm
Height: 32mm

Frequency

50/60Hz

LED chip brand

Hongli SMD 2835

LED tests

LM80

Connection

600mm Flex & AU plug

Material type

1.0mm PS Diffuser, 0.25 SPCC Back Plate

Accessories

Surface Mount Kit: ML-MRBP6X6-SMT
Recess Kit: ML-MRBP6X6-RF
Suspension Kit: ML-MRBP-SUS1
DALI Driver Kit: ML-MRBP-DALI1

*Total power consumed including driver
** Life span is calculated on an expected average lifespan.

Product Cover

This product is covered by a 5-year limited warranty.
