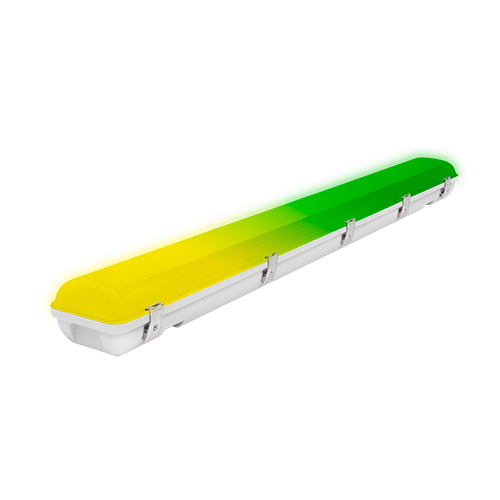

Titan X Yellow/Green Model ML-TN120-X-YG

ML-TN120-X-YG


ML-TN120-X-YG-EM


ML-TN120-X-YG-SN


ML-TN120-X-YG-SE


Find a stockist Chat to Specialist

Product Information

Overview

The next generation of Titan fittings, the Titan X, has been designed to be even tougher and pack in more features than before. Standard features include: 3 colour selection, multiple power settings, giant terminal blocks, marine grade external hardware, multiple side and rear entry points, and a wide mounting footprint. Sensor models feature 0-10V dimmable drivers with the sensor being tuneable for sensitivity, time, luminance, and a variety of holding patterns. Our innovative Yellow / Green version can switch between yellow or green by the user with an internal switch. Emergency version available on the standard, sensor, and yellow/green models. DALI drivers available as an accessory kit. All of this packed inside an IK10 IP65 housing with 316 stainless steel clips and backed by our 5 year warranty (1 year for EM batteries).

Tech Specs

Total power

ML-TN120-X-YG MAX 40W* (SELECTABLE 20W/27W/34W/40W)
ML-TN120-X-YG-EM MAX 43W* (SELECTABLE 23W/30W/37W/43W)
ML-TN120-X-YG-SN MAX 40W* (SELECTABLE 25W/40W)
ML-TN120-X-YG-SE MAX 40W* (SELECTABLE 25W/40W)

Max lumen output

Yellow: 3476lm
Green: 3590lm

Efficacy

Yellow: up to 80lm/w
Green: up to 83lm/w

IP rating

IP65

IK rating

IK10

Dimmable

ML-TN120-X-YG No
ML-TN120-X-YG-EM No
ML-TN120-X-YG-SN Yes (1-10V)
ML-TN120-X-YG-SE Yes (1-10V)

Beam angle

120°

Power supply

ML-TN120-X-YG: 220-240V AC 50/60Hz (Osram driver)
ML-TN120-X-YG-EM: 220-240V AC 50/60Hz (Osram driver)
ML-TN120-X-YG-SN: 220-240V AC 50/60Hz (Boke driver)
ML-TN120-X-YG-SE: 220-240V AC 50/60Hz (Boke driver)

Average life

50,000hrs**

Warranty

5 Years
1 year for EM Battery

Input / Inrush Current

ML-TN120-X-YG 0.17/ Up to 7 times Input Voltage
ML-TN120-X-YG-EM 0.18/ Up to 7 times Input Voltage
ML-TN120-X-YG-SN 0.17/ Up to 7 times Input Voltage
ML-TN120-X-YG-SE 0.18/ Up to 7 times Input Voltage

Power Factor

>0.9

Temperature range

ML-TN120-X-YG -20°C to +50°C
ML-TN120-X-YG-EM 0°C to +50°C
ML-TN120-X-YG-SN -20°C to +50°C
ML-TN120-X-YG-SE 0°C to +50°C

Dimensions

L 1265mm x W 130mm x H 88mm

Weight

ML-TN120-X-YG 2.08kg
ML-TN120-X-YG-EM 2.2kg
ML-TN120-X-YG-SN 2.1kg
ML-TN120-X-YG-SE 2.3kg

*Total power consumed including driver
**Average life calculated on the expected average lifespan

Product Cover

This product is covered by a 5 Year limited warranty.

On-Site Warranty

Free On-Site Warranty is exclusive for M-World members for 3 years from the date of installation. We've got you covered for any associated labour and equipment hire costs. Terms and Conditions apply.
