Overview
Meet the new hassle-free M-Elec NOX Highbay 230-300W. As the latest high-performance model added to our lighting range, this heavy-duty fixture combines 3 selectable wattages, 3 colour temperatures (3CCT), and 3 adjustable beam angles into a single unit. Engineered to adapt to any environment, the NOX Highbay 230-300W expands our commercial footprint to give contractors a smarter, premium warehouse lighting solution built to stock in the van.
Features
Quick Fit Microwave Sensor
Enhanced Durability
Rapid Heat Dissipation
Power Selectable
What's in the box
1 x LED Highbay with Sensor Adapter (sensor not included)
1 x AU Plug & 2m Flex
30cm Dimming Flex
Tech Specs
Total Power Consumed
Max 320W (200/240/320W power adjustable)
Lumen Output
44879 lm @320W /60° /5700K; 46141 lm @320W /90° /5700K; 45019 lm @320W /105° /5700K
Colour Temperature
3000/4000/5700K
IP Rating
IP65
Efficacy
142lm/W@320W /60° /5700K; 148lm/W@320W /90° /5700K; 140lm/W@320W /105 ° /5700K
CRI
≥80
Frequency
50/60Hz
Beam Angle
60°/90°/105° adjustable
Temperature Range
-20°C~+45°C
Dimmable

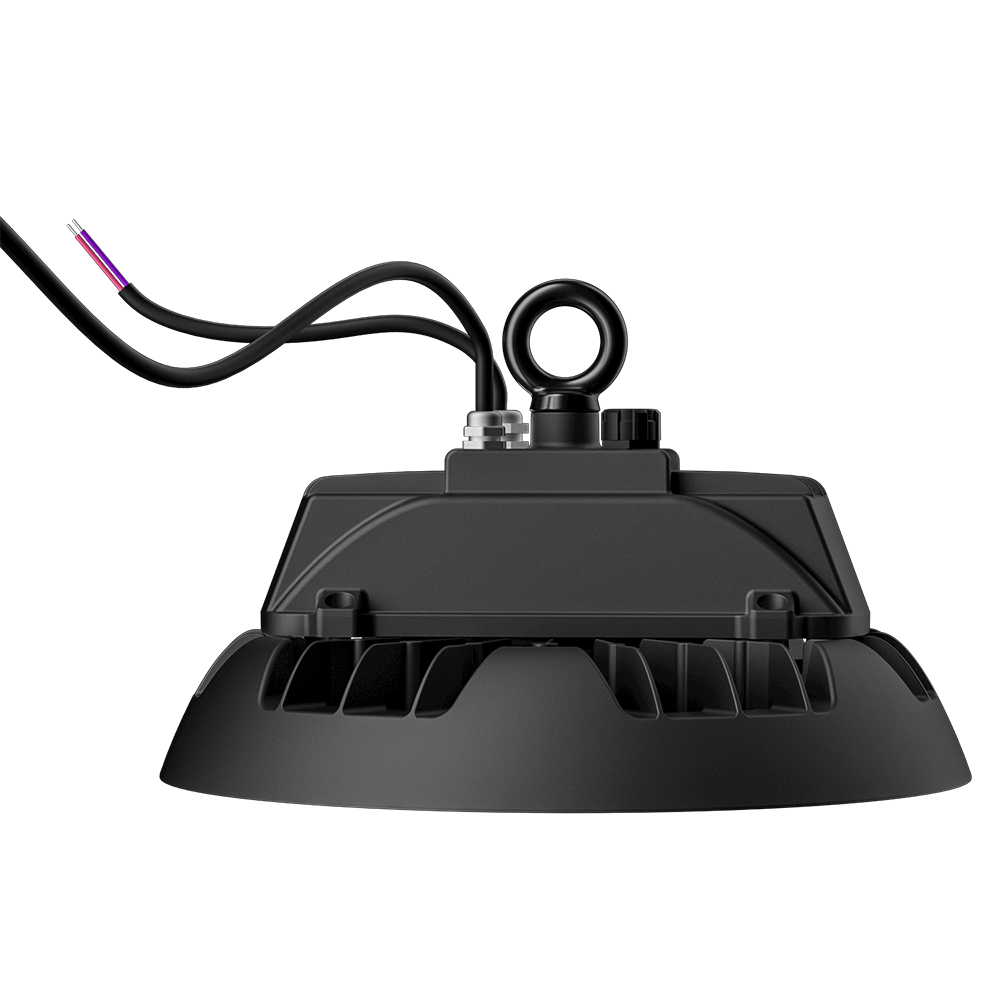

Yes (1-10V) Built in dimmable lead
Power Supply
120-277VAC  flicker free & non-isolated Fahold Driver
Average Life
50,000hrs**
Power Factor
>0.95
IK Rating
IK08
Operating / Inrush Current
1.36A / Up to 7 times operating current
Dimensions
Ø390*H195mm (excluding hanging ring: H141mm)
Weight
4.73kg
Accessories Sold Separately

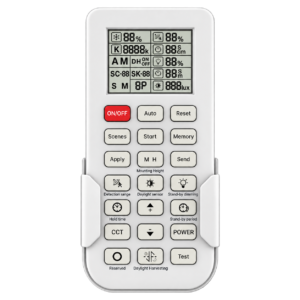

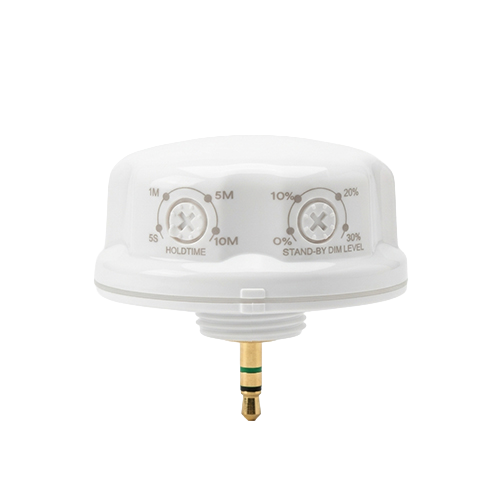

Microwave sensor: ML-SENSOR and remote: ML-REMOTE (for microwave sensor***)
Suitable for all models
Bracket Mount: ML-HB-BR,Refractor: ML-HB-REF, Refractor Kit: ML-HB-REF-D
* Total power consumed including driver
** Average life is calculated on expected average lifespan
*** Microwave sensor available as additional accessory
Product Cover
This product is covered by a 7 Year limited warranty.
On-Site Warranty
Free On-Site Warranty is exclusive for Sparkys United members for 3 years from the date of installation. We've got you covered for any associated labour and equipment hire costs. Terms and Conditions apply.
