Overview

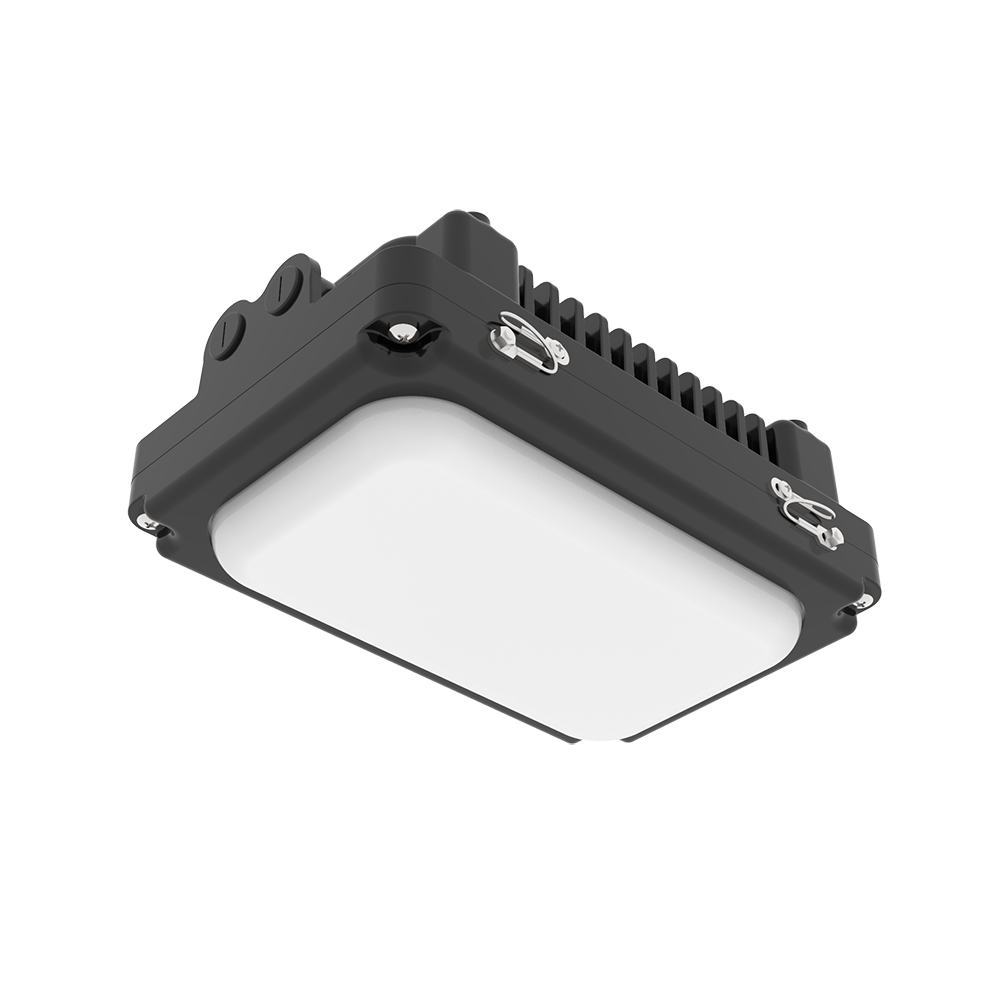

NOX Bulkhead Light. 32W, IK10, IP66, 6000K. PA16 Terminal Block
Tech Specs
Total Power Consumed
32W* (EM power: 5W)
Lumen Output
3465lm
Efficacy
Up to 108lm/W
Colour Temperature
6000K
IP Rating
IP66
IK Rating
IK10
CRI
80
Beam Angle
109º
Dimmable
No
Power Supply
200 - 240V Meanwell driver
Frequency
50Hz
Average Life
50,000hrs**
Dimensions
L 298mm x W 191mm x H 108mm
Weight
3.3kg
Operating Temperature
-25º to +50ºC
Compliance
SAA, C-TICK, IP66, IK10, AS2293.3
Connection
4 Pins PA16 terminal block
Operating Current
0.29A @ 230V
Inrush Current
Up to 7 times operating current***
Earth Leakage Current
0.75mA @ 277VAC
Construction
LM6 Diecast aluminium body with chromate treatment and black powder epoxy coat****
Polycarbonate lens*****
* Total power consumed including driver
** Average life is calculated on expected average lifespan
*** COLD START 50A(twidth=350μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
**** Marine grade 316 stainless steel body also available upon request
***** Borosilicate glass lens available upon request
