Overview

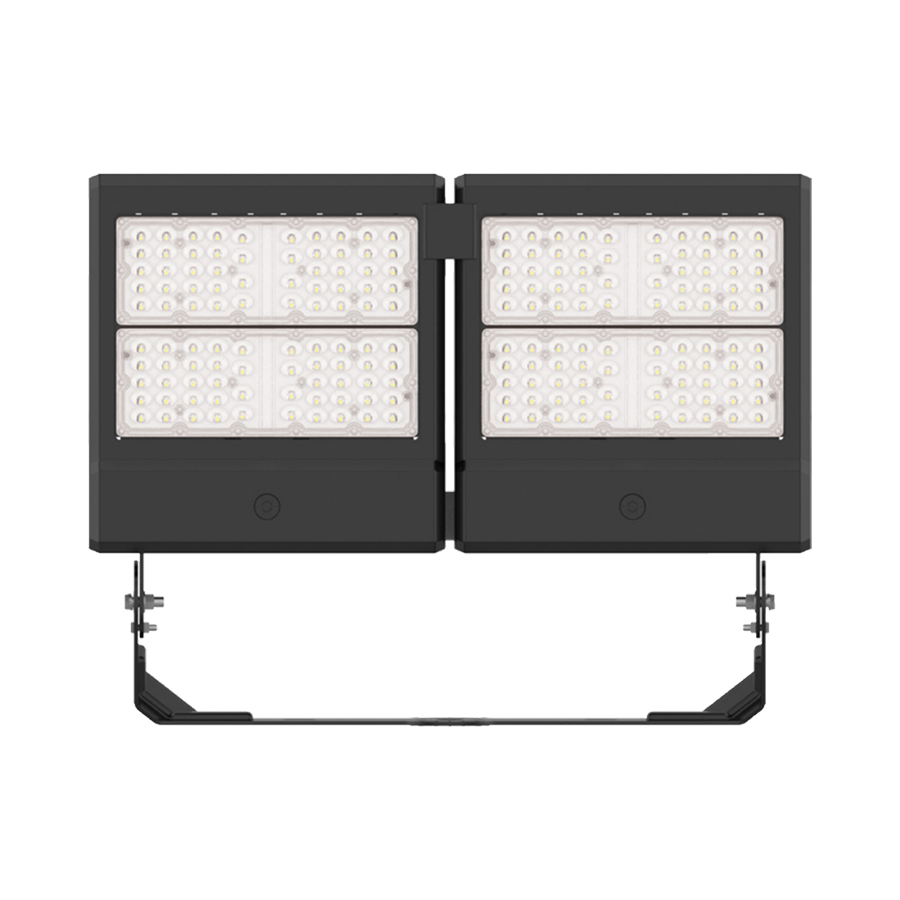

The legend of NOX Floodlights has now reached its 3rd version, offering you higher efficacy than ever and new models, specifically a 80W, a 460W and a 600W, which can reach the incredible lumen output of 89,500lm.
The NOX V3 range offers new modules which screw directly into the floodlight, providing the addition of a microwave sensor and a PE Cell and new quick fit brackets including adjustable spigot mount, a pole adaptor and type 3, 4, 5 lens options which adjust the beam, making the Nox V3 range suitable for almost any installation.
Features
Available in Warm White and White
Higher lumen output higher efficacy, up to 151lm/W!
Easy-install brackets
IK10
IP65
What's in the box
1 x LED floodlight
1 x 1m of pre-stripped flex
1 x 1m of Anaconda conduit cable
User Manual
Tech Specs
Total power consumed
460W*
Lumen output
63790lm (Warm White)
66340lm (White)
Colour temperature
3000K (Warm White)
5300K (White)
Efficacy
144-151lm/W
Impact rating
IK10
IP rating
IP65
Dimmable
Yes (1-10V - min 30%)
Beam angle
120 x 90 degrees
Power supply
100-240V AC Integrated Driver
Average life
50,000hrs**
Current draw
1.77A
Power factor
>0.9
CRI
70+
Suggested Mounting Height
12-18m
Dimensions
Width: 647mm
Height (including brackets): 497mm
Depth: 127mm
Weight
11.5kg
Construction
ADC12 Aluminum heat sink with Akzo Nobel powder coating & PC lens
Compliance
AS/NZS 60698.2.5:2018
AS CISPR 15:2017
IEC 62262:2002
* Total power consumed including driver< **Life span is calculated on expected average lifespan
Product Cover
This product is covered by a 7-year limited warranty.
