Overview

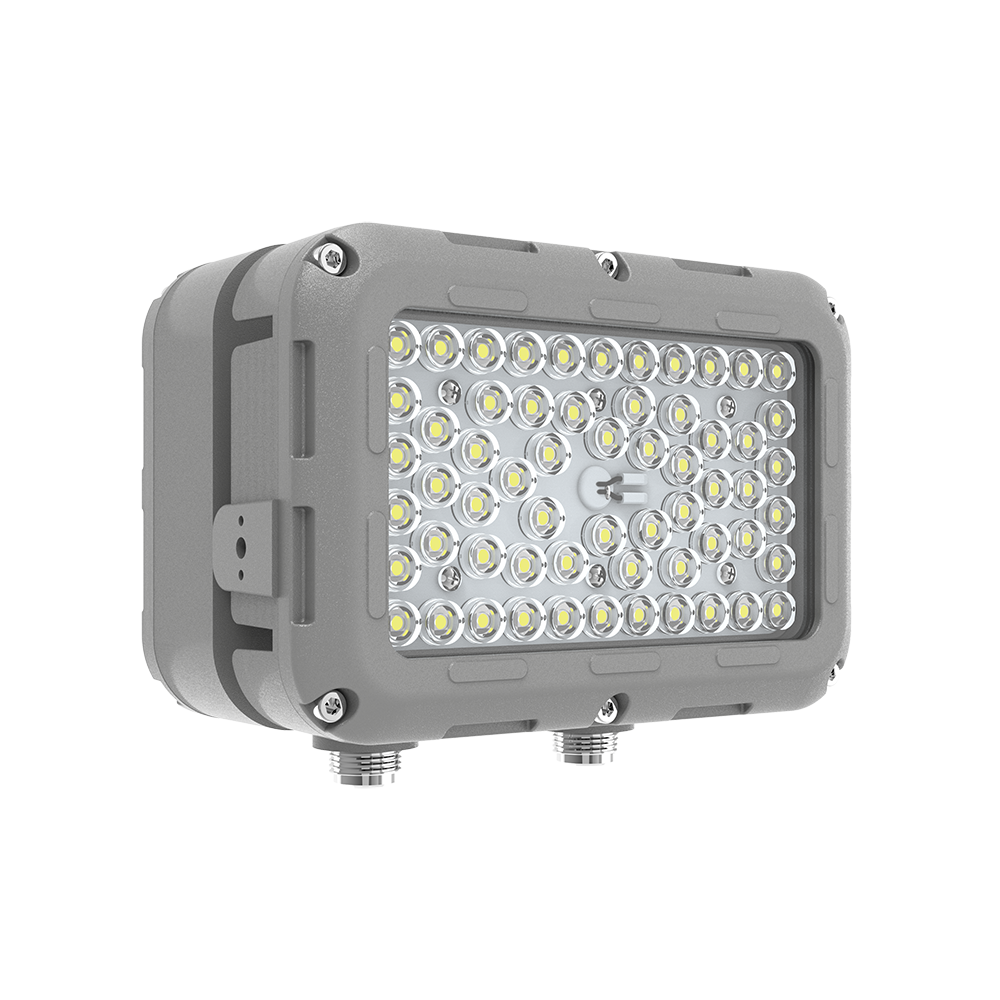

The STA4 Series LED luminaire is the ideal choice for marine and hazardous applications. They can be used in locations where moisture, dirt, dust, corrosion and vibration may be present, or areas where wind, water, snow or high ambient can be expected.

Tech Specs

Rated Power:

30W / 60W

Input Voltage:

100-277VAC
100-305VAC

Input Frequency:

50/60Hz

Power Factor:

>95%

Driver Efficiency:

>85%

Lumen Output:

3,300-3,900lm @30W / 6,600-7,800lm @60W

Lumens per Watt:

110 - 130lm/W

LED Chip:

Philips 5050

CCT:

2700K - 6500K

CRI:

>70

Beam Angle:

120°

Dimmimg:

0-10V dimming

Ambient Temp. Range:

-40°C to +65°C

Housing material:

ADC12 aluminium

Chip Lens:

Optical Grade PC

Fasteners

Stainless steel

Fixture Colour:

Gray RAL9006 (Standard)

Protection:

IP66/IK07

Mounting:

Pole Pendant, Wall, Stanchion

Cable Entries:

M20/M25/G1/2/G3/4

Product Cover

This product is covered by a 5 Year limited warranty.
