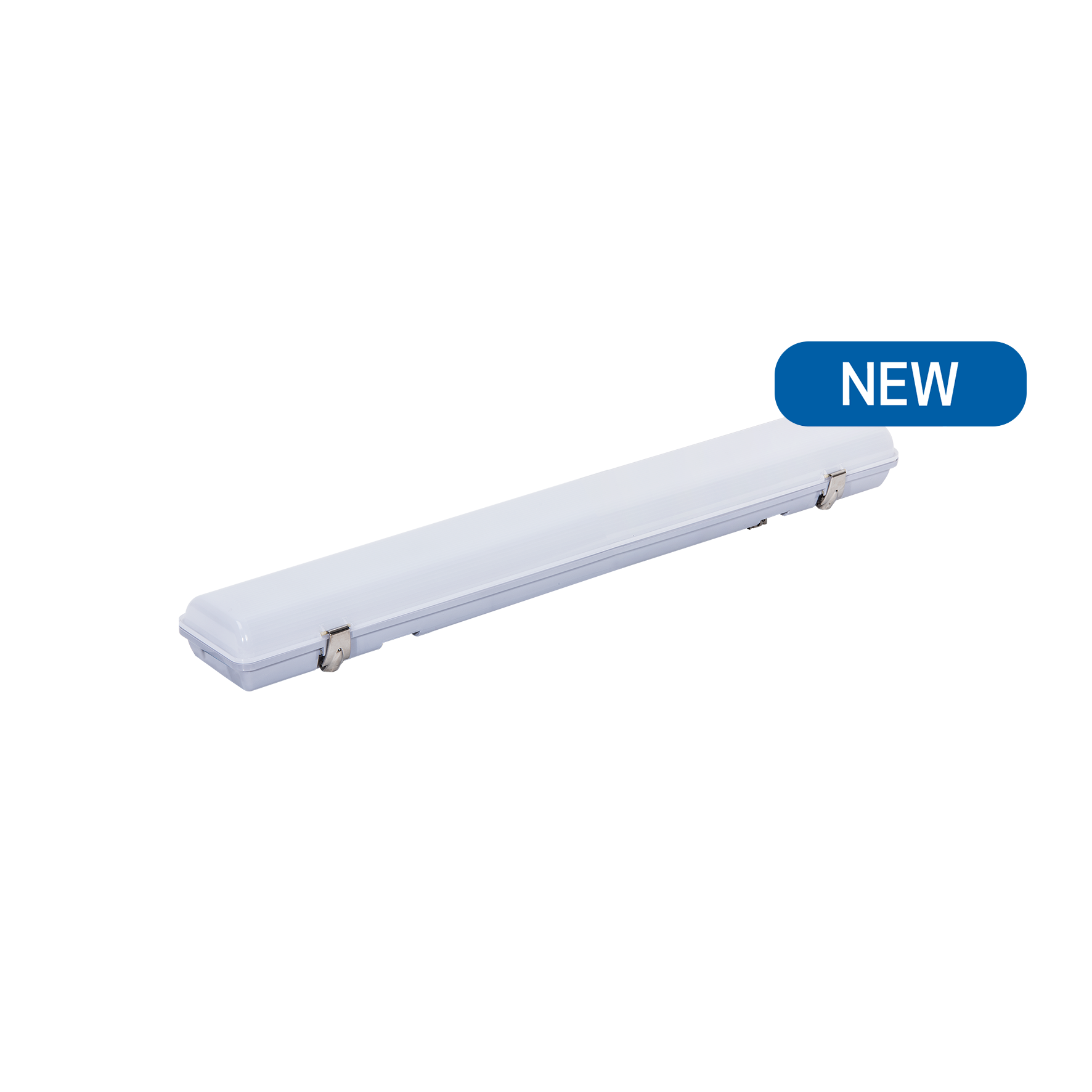

Titan X4 20W Batten

ML-TN20X4-M / SN / EM

Find a stockistChat to a Specialist

Mighty Strong.

MElec-Carindale-6
TITAN
MElec-Carindale-2

Product Information

Overview

The X4 range of TITAN LED battens are stronger, higher in output, and better than ever before! With a brand new polycarbonate body and internal design, the forth series of M-Elec’s TITANS sets a new standard of outdoor battens in the LED market.

Features

Microwave Sensor or Emergency Kit Models Available

IP65 weatherproof

IK10, Vandal resistant thanks to the included stainless clips with pre-made screw-points

100-126lm/W efficacy

Quick installation time

Stainless steel locking clips

What's in the box

1x LED IP65 batten

2x mounting bracket

4x screw

1x cable gland

User guide

Tech Specs

Total power consumed

20W*

Lumen output

WW 2000lm | NW 2400lm | W 2180lm

Colour temperature

WW 3000K | NW 4000K | W 6000K

Colours

Multi colour output, 3CCT

IP rating

IP65

Efficacy

100-126lm/W

CRI

80

Beam angle

120 Degrees

Dimmable

No

Power Supply

Built-in Tridonic Driver, 220-240V AC

Average life

50,000 hrs**

Construction (diffuser and body)

Polycarbonate Body + OPAL PC Cove

Operating temperature

-20° to +50°C

IK Rating

IK10

Dimensions

650 mm
Width: 117 mm
Height: 70 mm

* Total power including driver
** Average life calculated on expected average lifespan

Product Cover

This product is covered by a 5-year limited warranty. + 1-year limited warranty for the battery.
